Tractor Ballast

Oct 1, 2022 TaylorTinyFarm

Running the front end loader on the Kubota without ballast was down right scary as the Kubota is quite tippy without it. I made something to save a few bucks. This uses a drawbar welded to 3 point hitch adaptor. This will work with the Kubota quick hitch and is about 350 pounds of ballast.

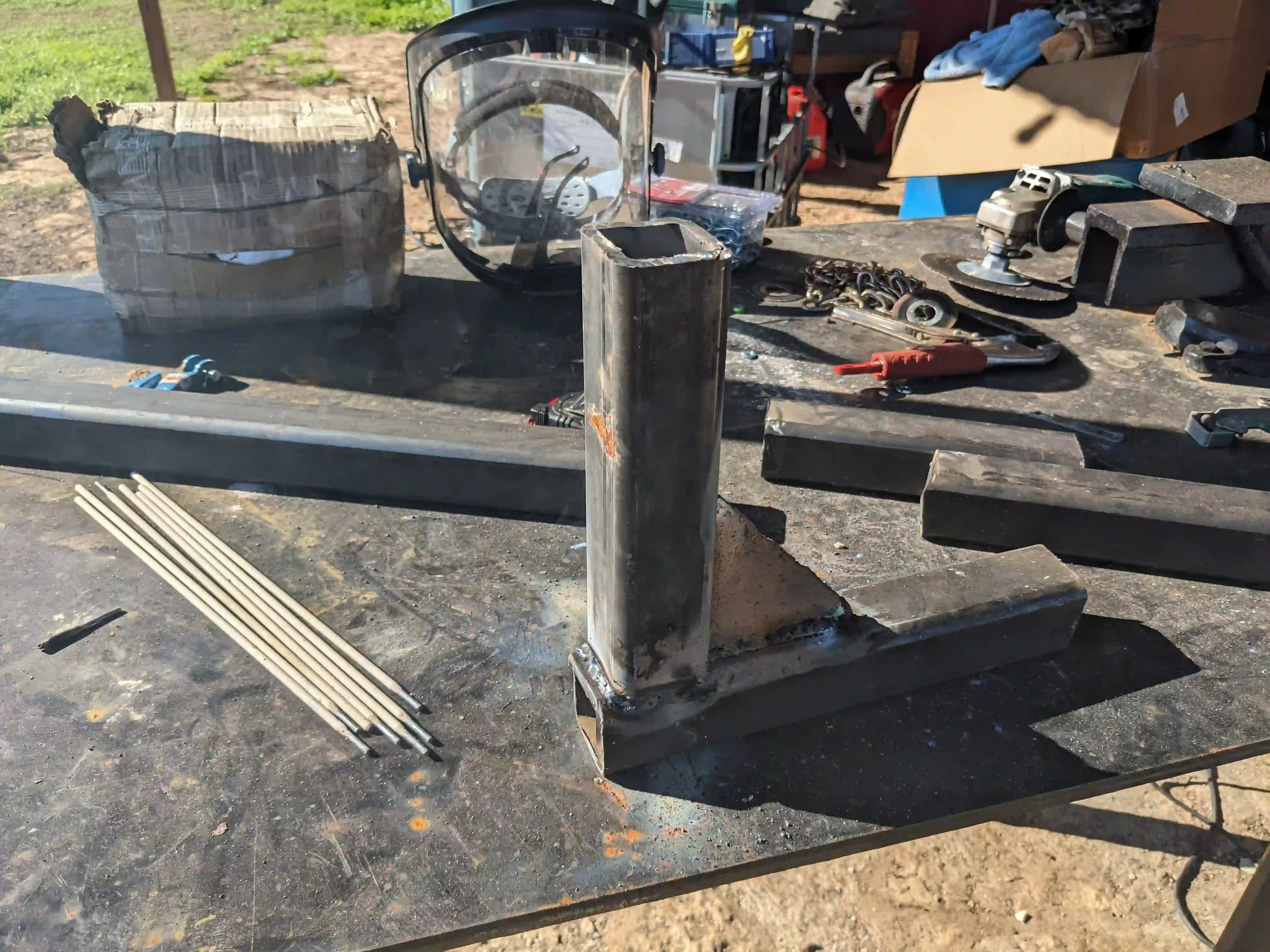

alter-text — The plan is to fill a truck tire with concrete and weld this L shaped square tubing to support it

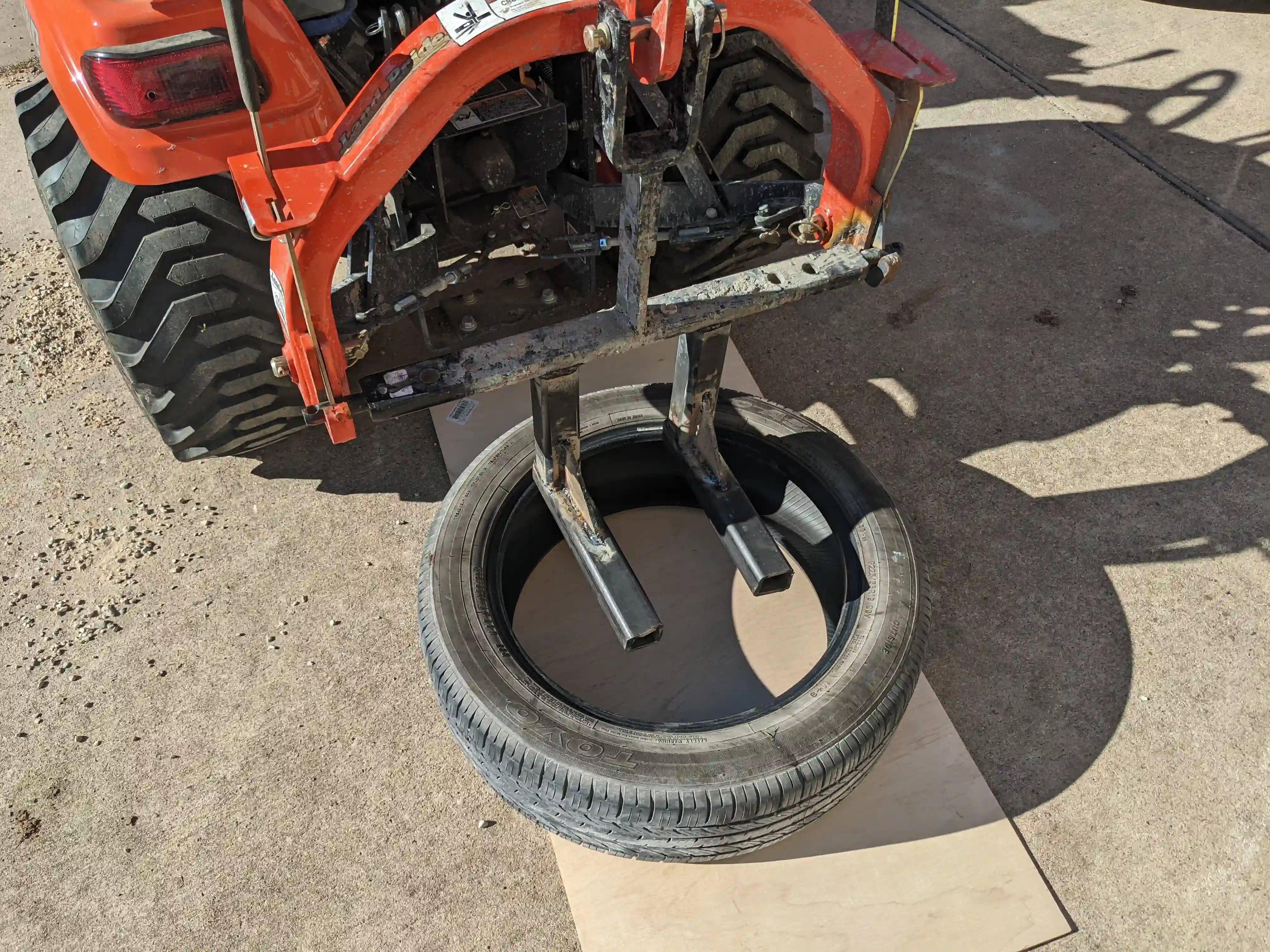

alter-text — Looks like it will fit.

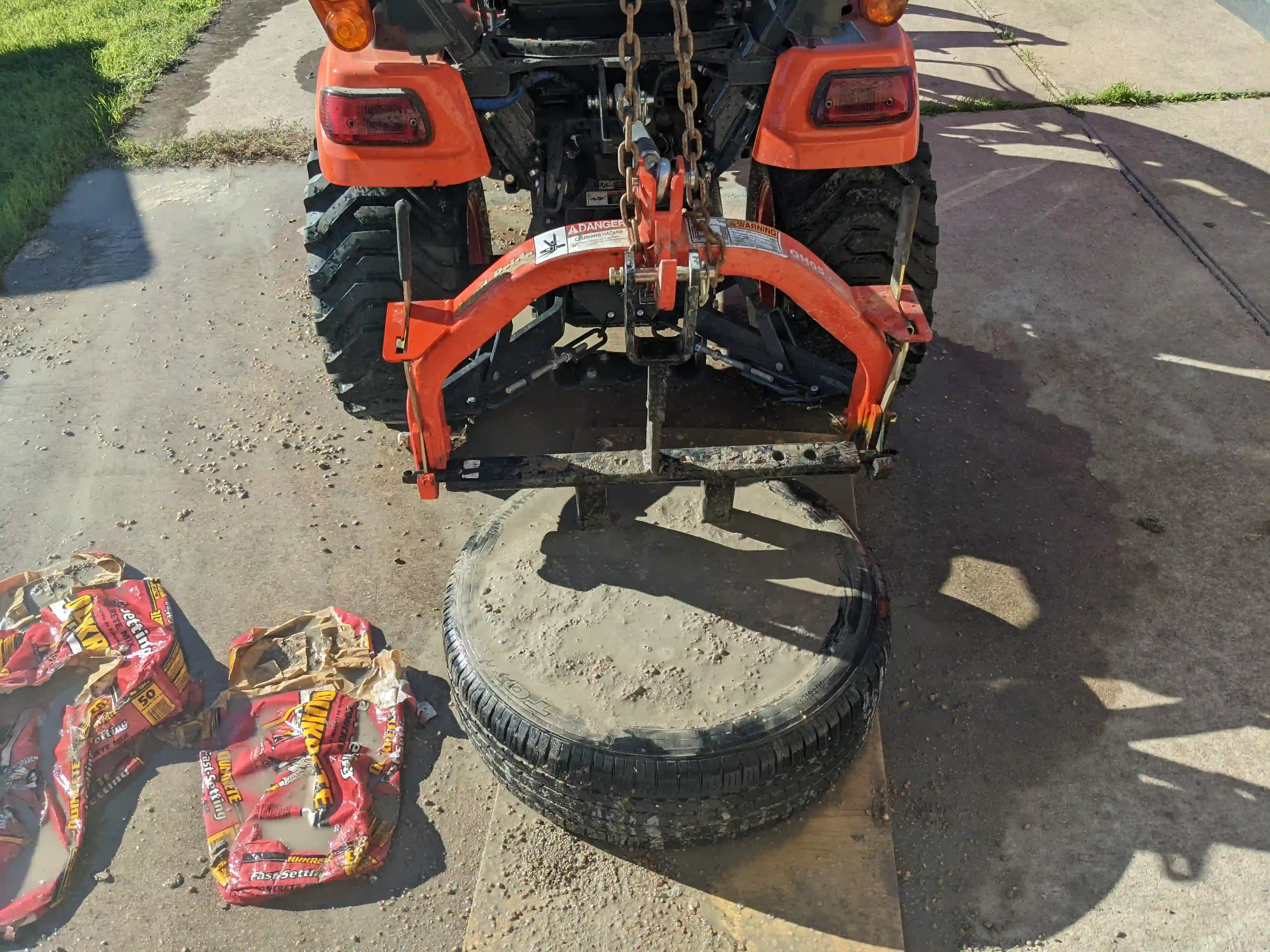

alter-text — Setting up! 7 sacks of Quikrete is around 350 pounds.

alter-text — Final product. This will weigh around 350 pounds which is under the 420 maximum that Kubota recommends. The weight is kepy very low and out back from the tractor which are all great for ballast. Also you can set it down and not tear up anything because of the tire.
